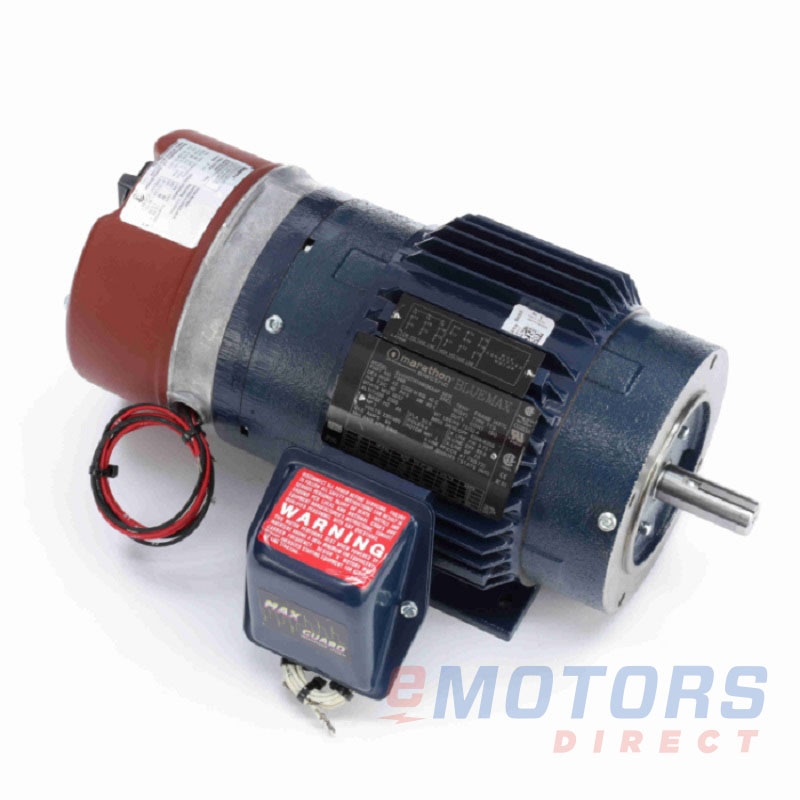

Leeson Y986

Description

Designed for vector applications where up to a 2000:1 constant torque speed range is required. For use on conveyors, machine tools, cranes, hoists, and other industrial machinery requiring quick stop and/or holding torque.

Feature

• MAX GUARD® Class F insulation system
• Constant torque operation from 0 to base speed on vector drive
• Constant HP operation to twice base speed
• Optimized for operation with IGBT inverter (NEMA® design A)
• Normally closed thermostats (one per phase, Class F)
• Ball bearings
• Continuous duty at 40ºC ambient
• Will accept encoder through Mod Central (see mod 24 for encoder mounting)
• Stearns* brakes, 56 series through 15 Lb-Ft, 87 series, 25Lb-Ft and larger
• Includes 140% rated spring-set self-adjusting NEMA 2 disk brake (Brake coil voltage matches motor)
• Universal mounting up to 15 Lb-Ft, (see comment below and Mod Central for vertical mounting)
• Horizontal mounting (see comment below and Mod Central for vertical mounting)
• UL recognized, CSA certified, and CE mark
• Three year warranty
